robotic-arm-img-1

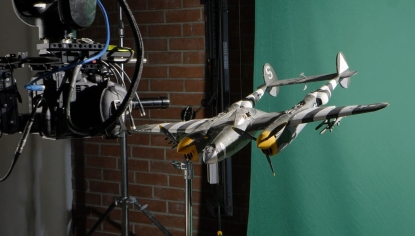

The TS-160 can be used on Robotic Arms to create unique video commercials and cinematography content with it’s lightweight design.

ROBOTIC ARM USE

The TS-160 lens gives focus freedom to robotic arm setups

Robotic Arms have become a significant tool for the repeat movements they provide to accomplish a special view of a product or item.
No other lens can do what the TS-160 Lens System can. When conventional lenses are used, the toughest part of the arm maneuver is to follow-focus the lens, a very demanding skill.
Using the TS-160 with Micro HM or any of the SFX-1, 2, 3 lenses, you set the focus to Infinity or to the farthest object and these lenses will hold focus throughout the manuever — no longer will you need to follow-focus during the scene.

SWATCH WATCH COMMERCIAL

Adam Voorhes

Lens Used: TS-160 w/ Micro HM Lens

ROBOTIC ARM FEATURES

Bill Bennett, ASC Cinematographer

Lens Used: TS-160 w/ Micro HM Lens

ROBOTIC ARM IN USE

Bill Bennett, ASC Cinematographer

Lens Used: TS-160 w/ SFX-1 Lens
